Complying with IEC60914 and GBT15381-94 international standards,
*The system host integrates conference discussion and video automatic tracking functions,
*Can be installed in a 19-inch standard cabinet
*The system has a power-off automatic memory function,
*It has 4 RJ45 microphone unit network ports, each supporting 20 units and can connect 80 units
It also has 4 8-core microphone unit ports, each supporting 25 units and can connect 100 units
*The number of chairpersons can reach up to 12 chairperson units, and the number of speakers can be set arbitrarily from 1 to 12

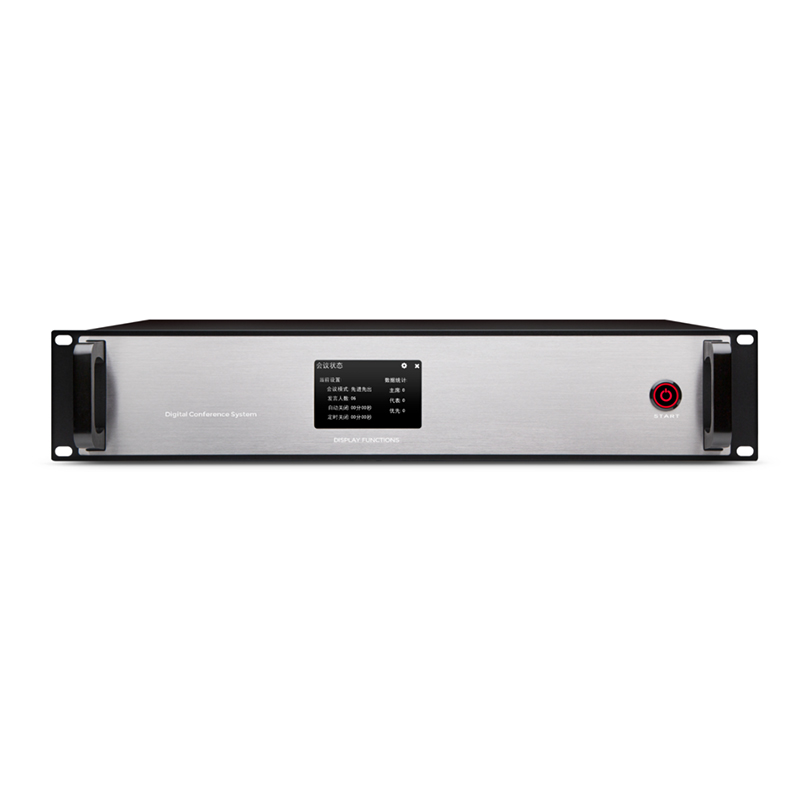

*The main panel has a 4.3-inch touch interface, and the touch screen can enter the menu device use function,
*You can intuitively view the real-time speaking status of the microphone on the host display screen, and the background real-time monitoring is more convenient.
*The system has a conference speaking time that can be controlled between 0-99 seconds. Set the time.
The microphone will be forced to stop speaking within a pre-set time to meet a variety of needs.
* Clear sound, high fidelity, low noise interference, strong confidentiality, easy installation
* With camera tracking function, preset points can be set through the host buttons, no computer adjustment operation is required.
* Support Sony Vscia/D70, PELCO-D/P, Yaan and other camera protocols,
* Speech mode has: first-in-first-out mode, last-in-first-out mode, full-open mode, quantity limit mode, chairman-only mode
* Arbitrary allocation of ID address code function to avoid ID address duplication
* Support central control with central control RS232 interface
* With two Lotus audio output ports, two Lotus audio output and input ports, 6.35 microphone input port
* With 1 balanced output port, 1 unbalanced output port
Provide professional audio and video management services to the world, and strive to create "one-stop" audio and video solutions for different scenarios.
Input/output 8P-DIN×4 Input/output: Network interface rj45 *4
Input: RCA×2
Output: XLRM×1 (balanced) RCA×1 6.35mm×1
USB interface 1
232 serial port 2
Working voltage: AC220V-50HZ
Power loss: 120W (MAX)
Frequency response: 100-14KHZ
External dimensions: 480×325×88mm
Weight: 8.5kg
Color: Silver
Input impedance: LINE: 50KΩ, PBIN: 50KΩ
Frequency response: 20Hz-20KHz
Output impedance:
REC: 200Ω
LINE: 200Ω
BALANCE: 300Ω
NOBALANCE: 400Ω
Signal-to-noise ratio: 78dB (1KHz
